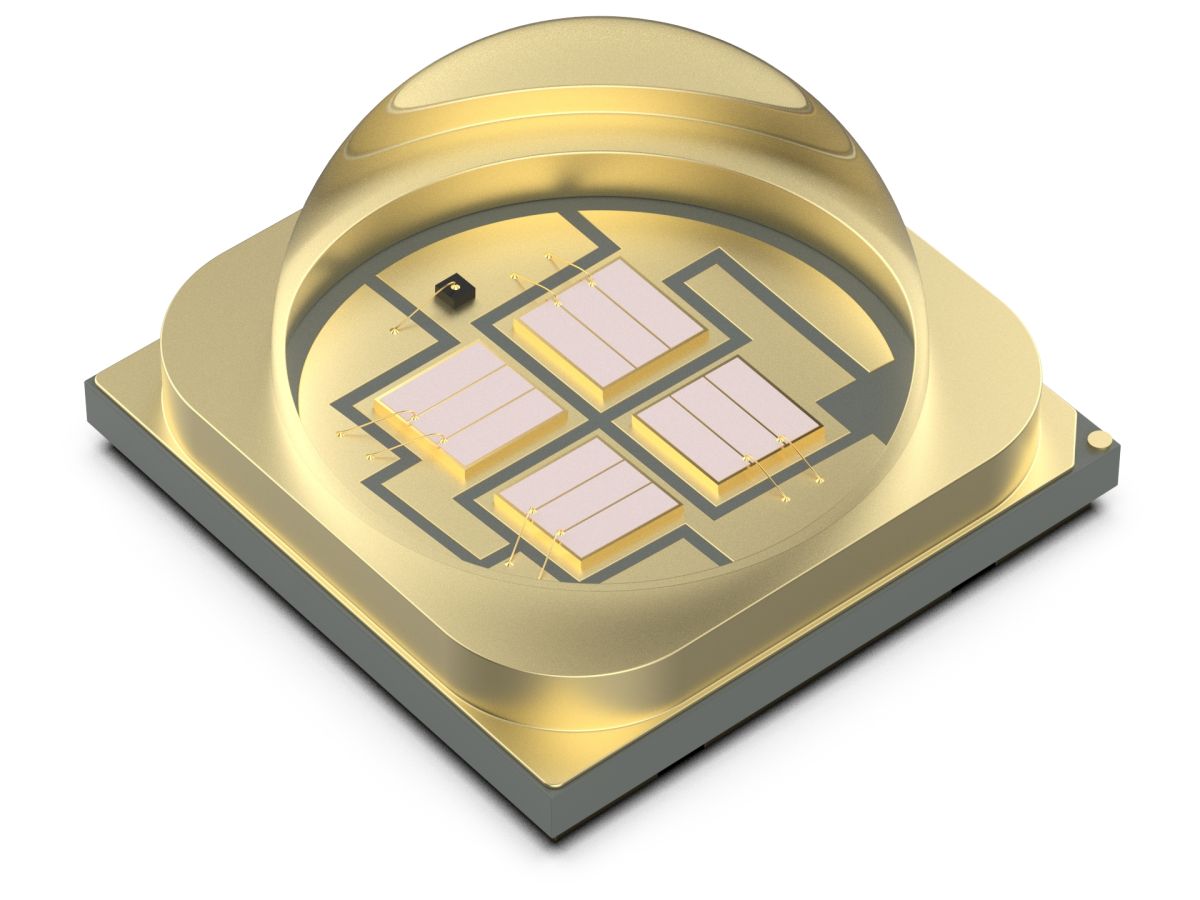

UV 6565 high power 60° quartz ceramic series

Color LED

Characteristics of the

- High thermal conductivity aluminum nitride ceramic with high thermal resistance quartz lens, good product stability;

- Four-core integration, high optical power density;

-Widely used in curing, exposure, printing, testing and other fields.

UV 6565 high power 60° quartz ceramic series
UV 6565 high power 60° quartz ceramic series

Product Parameters

Part No.P(W)λd(nm)VF(V)IF(mA)фe(mW)2θ1/2(°)L*W*H(mm)
RC65L6-UBP-AR-0413-16365-370....13.0-16.010004500-7100................606.6 * 6.6 * 4.6
RC65L6-UEP-AR-0413-16380-390....13.0-16.010004500-7100................606.6 * 6.6 * 4.6
rc65l6-ugp-ar-0413-16390-400....13.0-16.010004500-7100................606.6 * 6.6 * 4.6
RC65L6-UIP-AR-0413-16400-410....13.0-16.010004500-7100................606.6 * 6.6 * 4.6
RC65L6-UBP-AR-2213-16365-370....6.6-8.020004500-7100................606.6 * 6.6 * 4.6
RC65L6-UEP-AR-2213-16380-390....6.6-8.020004500-7100................606.6 * 6.6 * 4.6
RC65L6-UGP-AR-2213-16390-400....6.6-8.020004500-7100................606.6 * 6.6 * 4.6
RC65L6-UIP-AR-2213-16400-410....6.6-8.020004500-7100................606.6 * 6.6 * 4.6
rf-c65s6-ubp-ar-049-12365-370....13.0-16.07004500-7100................606.6 * 6.6 * 4.6
RF-C65S6-UEP-AR-049-12380-390....13.0-16.07004500-7100................606.6 * 6.6 * 4.6
rf-c65s6-ugp-ar-049-12390-400....13.0-16.07004500-7100................606.6 * 6.6 * 4.6
RF-C65S6-UIP-AR-049-12400-410....13.0-16.07004500-7100................606.6 * 6.6 * 4.6
RF-C65S6-UBP-AR-229-12365-370....6.6-8.014004500-7100................606.6 * 6.6 * 4.6
RF-C65S6-UEP-AR-229-12380-390....6.6-8.014004500-7100................606.6 * 6.6 * 4.6
RF-C65S6-UGP-AR-229-12390-400....6.6-8.014004500-7100................606.6 * 6.6 * 4.6
RF-C65S6-UIP-AR-229-12400-410....6.6-8.014004500-7100................606.6 * 6.6 * 4.6
