Automotive Interior Lighting
- Vertical table mount package;
- High consistency;
- L70>54Khrs;
- Meet Rohs requirements;

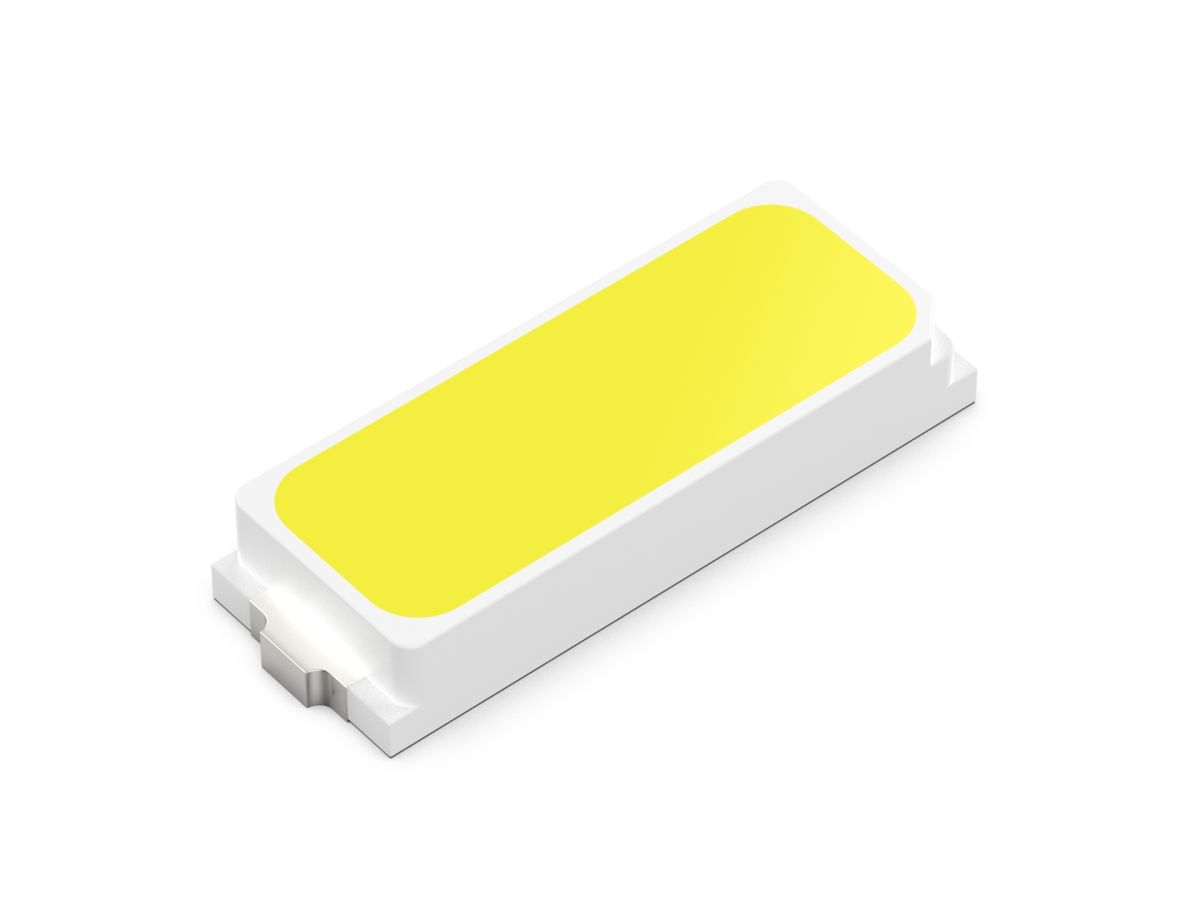

- Package size 4.0*1.4*0.65mm
| Part No. | Luminous Flux(lm) | XY lambda d (nm) | VF(V) | IF(mA) | 2 theta (12 °) | Rthj-sel.(KW) | TJMax (° C) | Color |
| RF-A2F40-R23D-R6 | 18 | 623 | 2 | 120-150. | 120 | 300 | 115 | Red |
| RF-A2F40-Y93D-Y6 | 18 | 593 | 2 | 120-150. | 120 | 300 | 115 | Yellow |
| RF-A1F40-W15B-A8 | 35 | (0.28, 0.27) | 3 | 90-120. | 120 | 300 | 115 | White |
| RF-A1F40-W75B-A8 | 32 | (0.30, 0.29) | 3 | 90-120. | 120 | 300 | 115 | White |
If you're interested in our products or service, you can choose to leave your information here, and we will be in touch with you shortly.
- Applied to switches, keys, etc.;
- Vertical table paste package, a variety of colors can be selected;
- Package size 2.2*1.4*1.3mm, small size for flexible design;
- AEC-Q101 certification.
- Applied to switches, keys, etc.;
- Vertical table paste package, a variety of colors can be selected;
- Package size 1.6*0.8*0.55mm, small size for flexible design;
- AEC-Q101 certification.
- Applied to switches, instruments, buttons, etc.;
- Vertical table paste package, a variety of colors can be selected;
- Package size 3.5*2.8*1.85mm;
- AEC-Q101 certification.
- Vertical table paste package, excellent anti-vulcanization performance;
- Package size 3.5*2.8*3.25mm, a variety of colors optional;
- AEC-Q102 authentication.
- Vertical table paste package, excellent anti-vulcanization performance;
- Package size 3.5*2.8*3.5mm, a variety of colors optional;
- AEC-Q102 authentication.
- Vertical table paste package, excellent anti-vulcanization performance;
- Package size 3.5*2.8*3.5mm, a variety of colors optional;
- AEC-Q102.
- Vertical table mount package;
- EMC material, package size 3.0*1.4*0.52mm;
- AEC-Q102 authentication.
- Vertical table paste package, anti-vulcanization performance;
- Package size 3.5*2.8*3.5mm, multiple colors optional;
- AEC-Q102 certification.
