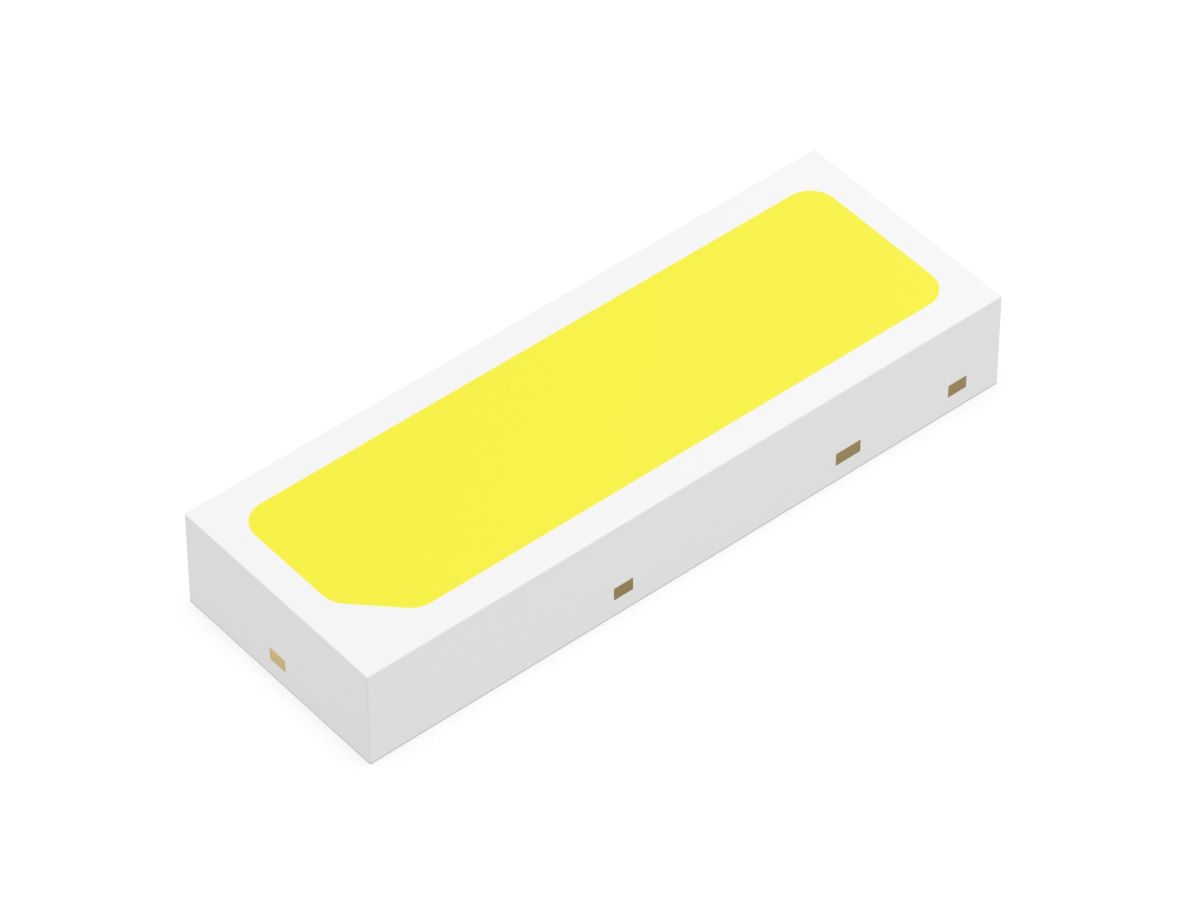

Backlight
- 20/30/60/80MA specifications and models;
- 3.0*1.4mm size;
- Stable reliability, LM50 more than 40,000 hours;
- Variety, PPA& PCT& EMC series products;
| Part No. | package | L*W*H(mm) | colour gamut | If(mA) | Static electricity | VF(V) | IV(lm) |
| LT3014WH-A-Q | 3014-20mA | 3.0 * 1.4 * 0.7 | 0.65 | 20mA | 2KV | 2.7-3.4 | 6.0-10.0 |
| LT3014WH-B-Q | 3014-30mA | 3.0 * 1.4 * 0.7 | 0.65 | 30mA | 2KV | 2.7-3.4 | 10.0-13.0 |
| LT3014WH-D-Q | 3014-60mA | 3.0 * 1.4 * 0.7 | 0.65 | 60mA | 2KV | 2.7-3.4 | 16.0-22.0 |
| LT3014WH-E-Q | 3014-80mA | 3.0 * 1.4 * 0.7 | 0.65 | 80mA | 2KV | 2.7-3.4 | 25.0-30.0 |
If you're interested in our products or service, you can choose to leave your information here, and we will be in touch with you shortly.

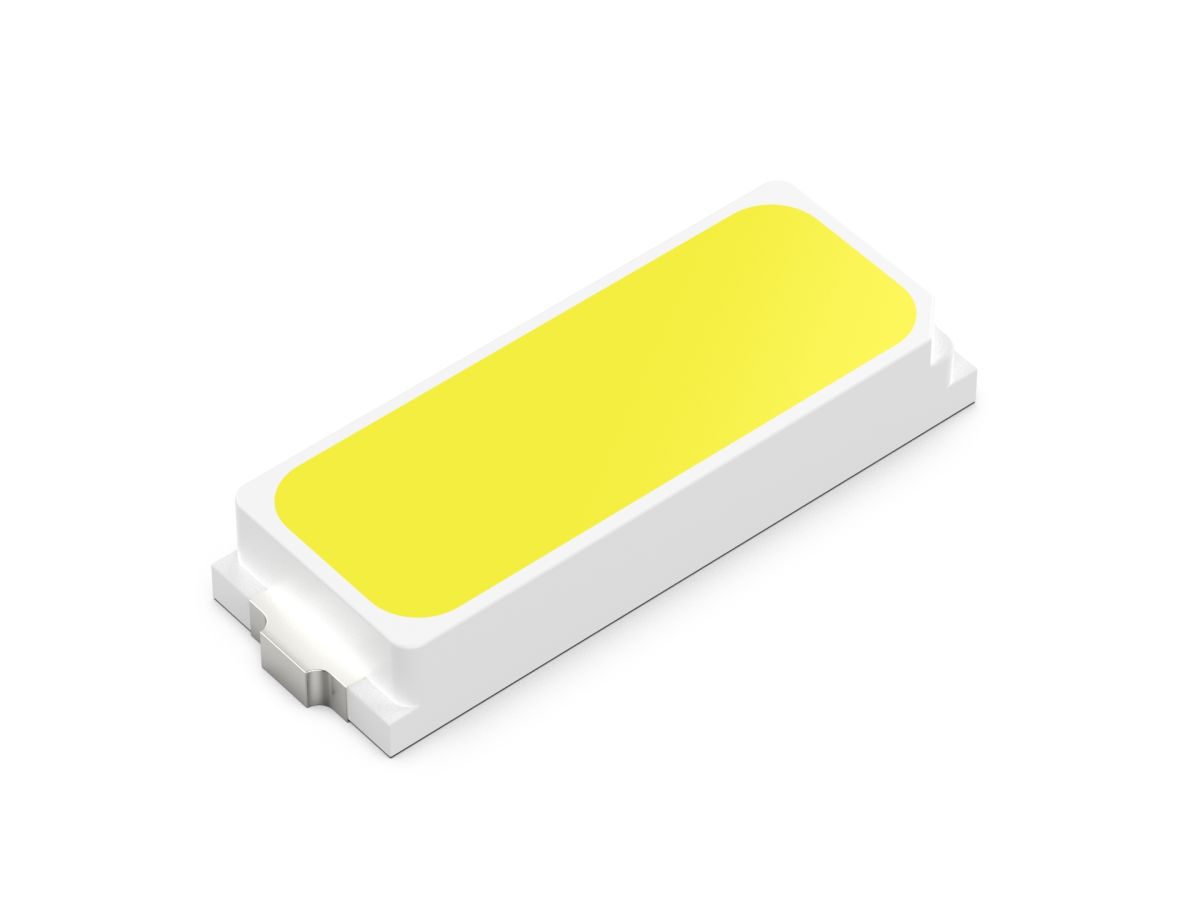

- 2-3W series;
- High power, high reliability, good heat resistance, excellent resistance to vulcanization;
- Stable reliability, LM50 more than 30,000 hours;
- CIE color points are rich, covering all color blocks in the industry;
- Can provide worldwide KSF white light conversion patent guarantee and lamp bar patent guarantee.
- 1-2W series;
- Superior performance, large light Angle, high KSF gamut/scheme cost advantage;
- Stable reliability, LM50 more than 30,000 hours;
- CIE color points are rich, covering all color blocks in the industry;
- Can provide worldwide KSF white light conversion patent guarantee and lamp bar patent guarantee.
-0.5-0.8W series;
-3V / 6V specification optional, superior performance, short mixing distance, meet the needs of narrow frame /KSF high gamut/low voltage;
- High reliability demand, LM50 over 30,000 hours;
- CIE color points are rich, covering all color blocks in the industry;
- 0.2-0.5W series;
- Excellent performance, short mixing distance, meet the needs of narrow frame /KSF high gamut/low voltage;
- Stable reliability, LM50 more than 30,000 hours;
- CIE color points are rich, covering all color blocks in the industry;
-0.4T, global patent;
- Ultra-high gamut: NTSC is 105-110;
Product application: LCD backlight, mobile phone backlight;
- Product size: 2.6mm*0.6mm*0.4mm.
-0.3T, global patent;
Product application: LCD backlight, mobile phone backlight;
- Thin: the lamp bead thickness is 0.3-0.4mm;
- Ultra-thin, high light efficiency, narrow frame, comprehensive screen;
- Product size: 3.0mm*0.85mm*0.35mm.
-0.6h, global patent;
Product application: LCD backlight, mobile phone backlight;
- Ultra-high color gamut, low-cost development;
- White LED, PLCC package;
- Meet RoHS requirements.
- Product application: keyboard lamp, atmosphere lamp
- RGB LED is composed of red/green/blue chip;
- Product size :3.80mm*1.00mm*0.60mm;
- Meet RoHS requirements.
-0.4T series;
- Excellent performance, strong breaking resistance, to meet the needs of high brightness;
- Stable reliability, conventional LM50 more than 30,000 hours;
- CIE color points are rich, covering all color blocks in the industry;
-0.4T series;
- Excellent performance, strong breaking resistance, meet the needs of narrow frame /KSF high gamut/low voltage;
- Stable reliability, conventional LM50 more than 30,000 hours;
- CIE color points are rich, covering all color blocks in the industry;
-0.4T series;
- Excellent performance, short mixing distance, meet the needs of narrow frame /KSF high gamut/low voltage;
- Stable reliability, LM50 more than 30,000 hours;
- CIE color points are rich, covering all color blocks in the industry.
- Suitable for vehicle backlight, vehicle interior lighting, backlight display, switch indication, etc.
- High reliability, in line with the AEC-Q102 reliability standard, stable performance, green environmental protection.
- Suitable for MINI POB car backlight, car interior lighting, backlight display, switch indication, etc.
- High reliability, in line with the vehicle specification AEC-Q102 reliability standard, stable performance, green and environmental protection.
- Reliability and stability, LM50 greater than 50,000 hours;
- Rich CIE color point, high color gamut, common color gamut, low blue light scheme.
