Color LED
- Color temperature can be customized;
- High integration, rich color, excellent mixing effect;
- Compact structure to meet the dense arrangement of lamp beads;
- A variety of light color adjustable and controllable.
| LED Type | Part Number | Color | Test Condition (mA) | Forward current (mA) | Input power Typ（W） | Wavelength（nm） or CCT | mcd/lm/mw |

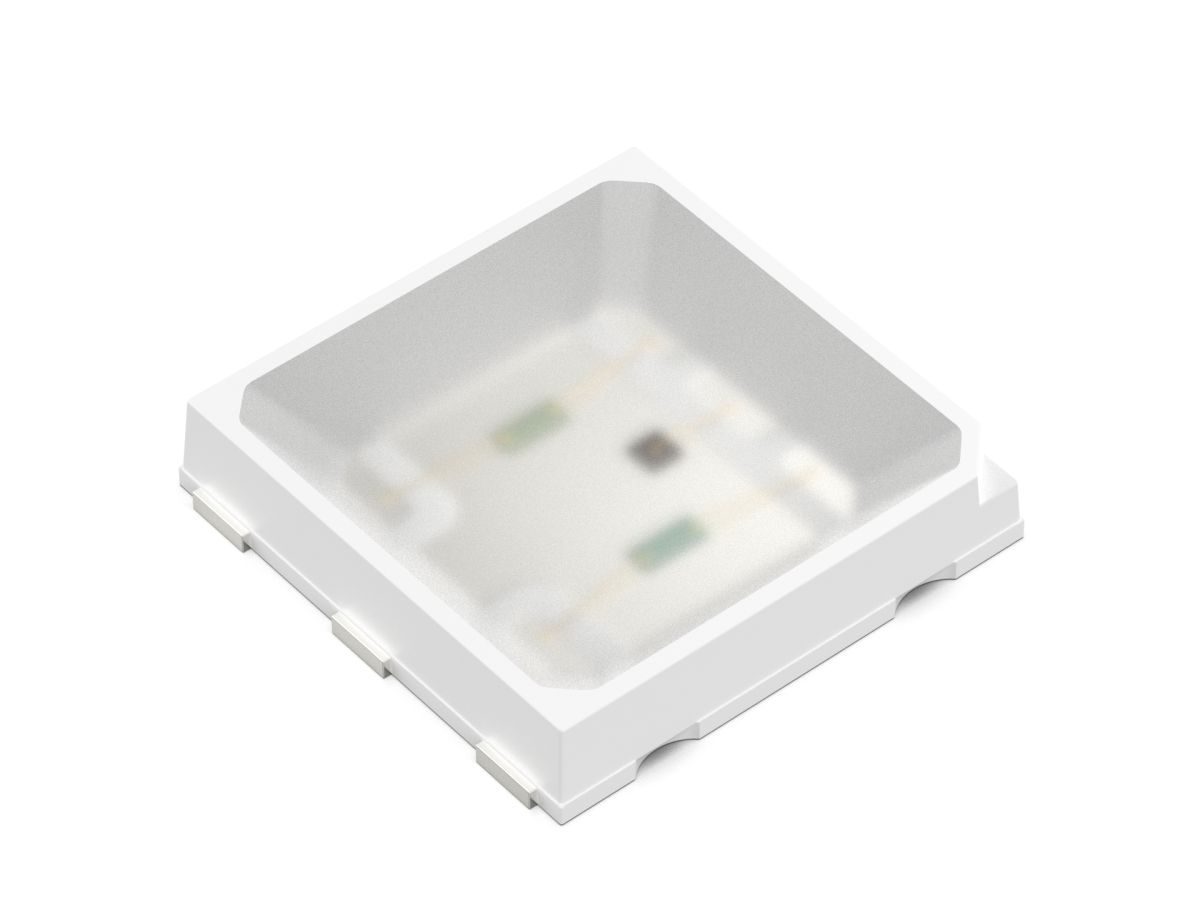

| PCT5050 5.2*5.0*1.1mm | RF-W2SP50CS-H**W-S | RGBW | 200mA*4 | 200mA*4 | 2 | R 619-625nm G 523-528nm B 467-472nm | R 18-23-28lm G 39-47-55lm B 9-12-15lm W(22A/B) 47-53-58lm W(27A/B) 56-62-68lm W(30A/B) 58-64-70lm W(40A/B) 62-68-74lm W(57A/B) 64-70-76lm |
| PCT5050 5.4*5.0*1.05mm | RF-W7SA50TS-P**W-J | RGBW | 150mA*4 | 180mA*4 | 2 | R 619-625nm G 524-528nm B 466-470nm W 40E3/40E5 | R：19-23lm G：36-43lm B：8-12lm W：52-57-62lm |
If you're interested in our products or service, you can choose to leave your information here, and we will be in touch with you shortly.
Moisture Sensitivity Level: MSL 1+
Thermal-electrical separation; high power range from 1–12 W
120° standard beam angle (customizable to 30°/60°/90°/flat)
Multicolor options (customizable wavelengths)
Low thermal resistance: <5 °C/W
- Global initiative, patented products (counterfeiting will be investigated);
- High integration, rich color, excellent mixing effect;
- Compact structure to meet the dense arrangement of lamp beads;
- Light color adjustable and controllable, a product can achieve unlimited possibilities.
- Global initiative, patented products (counterfeiting will be investigated);
- High integration, rich color, excellent mixing effect;
- Compact structure to meet the dense arrangement of lamp beads;
- Light color adjustable and controllable, a product can achieve unlimited possibilities.
- According to different application needs to provide a variety of optional packaging styles, can provide front and side stickers, different strength to meet the various needs of hard and soft lamp;
- ANSI/ERP, full color temperature coverage;
- Special color area/color point customization.
- Miniaturization facilitates application space design;
- Can replace CHIP LED, with better reliability, application experience of large companies at home and abroad;
- Customized color book with rich models and specifications;
- High mechanical strength, can withstand bending.
- Small size meets the high density requirement;
- High mechanical strength, resistant to bending without breaking;
- Single Bin supply, good color consistency;
- Intellectual property protection at home and abroad.
Gold-plated design for excellent anti-sulfur performance
MSL 1+
PPE: 4.40 µmol/J @700 mA (660 nm)
WPE: >81% @700 mA (660 nm)
Q90 ≥ 36,000 hours
Low thermal resistance: <3 °C/W
Customized spectral fitting available for horticulture lighting modules
-Main wavelength are 450/660/730nm, covering PAR 400-700nm, can do other custom special wavelength from 365-800nm
-0.2-0.5 W Power，PCT2835, single color light
Moisture Sensitivity Level: MSL 1+
Thermal-electrical separation; high power range from 1–12 W
120° standard beam angle (customizable to 30°/60°/90°/flat)
Multicolor options (customizable wavelengths)
Low thermal resistance: <5 °C/W
-Applied to intelligent bulb, outdoor lighting and other fields;
- EMC material, high air tightness, small integrated volume;
- Good color purity, high temperature resistance, low thermal resistance & LT; 15 ℃ / W.
Gold-plated design for excellent anti-sulfur performance
MSL 1+
PPE: 4.40 µmol/J @700 mA (660 nm)
WPE: >81% @700 mA (660 nm)
Q90 ≥ 36,000 hours
Low thermal resistance: <3 °C/W
Customized spectral fitting available for horticulture lighting modules
- MSL3
- Good consistency of RGB mixed white light;
- can be divided by color light and mixed white light;
- LM-80

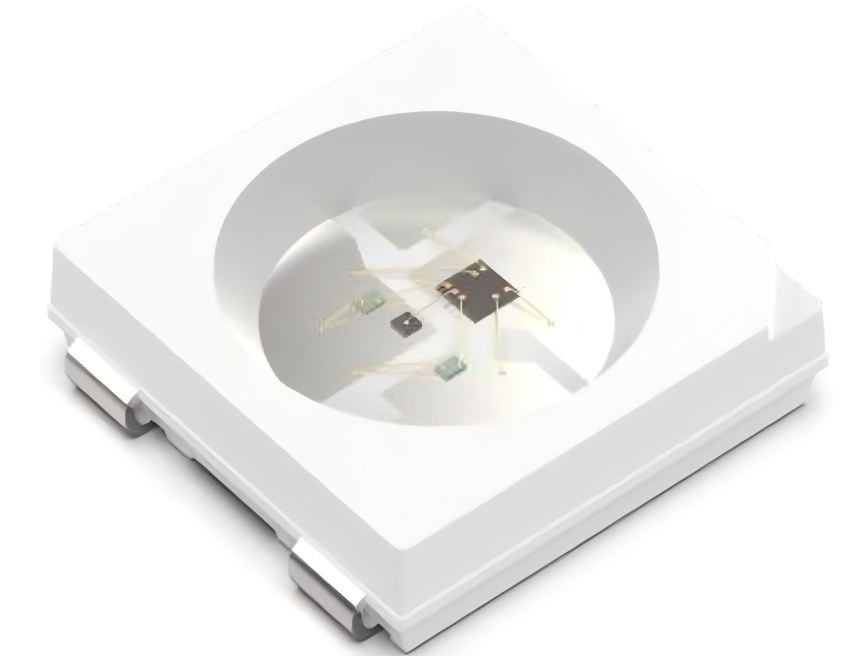

Individually Addressable: Each LED can be controlled independently.
Simplified Control: Requires only a single signal wire.
Streamlined Circuit Design: Saves board space with no need for extra ICs or PWM pins.
Efficient Production: Fewer SMT components simplify assembly.
Versatile Options: Available in a variety of package sizes.
- Experience in cooperation with large factories without quality problems;
- Rich in color;
- Can be developed on site.
- Experience in cooperation with large factories without quality problems;
- Rich in color;
- Can be developed on site.
- Dachang cooperation experience, no quality problems;
- colorful;
- Can be fixed point development.
- Global initiative, patented products (counterfeiting will be investigated);
- High integration, rich color, excellent mixing effect;
- Compact structure to meet the dense arrangement of lamp beads;
- Light color adjustable and controllable, a product can achieve unlimited possibilities.
- MSL3
- Good consistency of RGB mixed white light;
- can be divided by color light and mixed white light;
- LM-80
