PLCC2 2835 Education 1W

Product

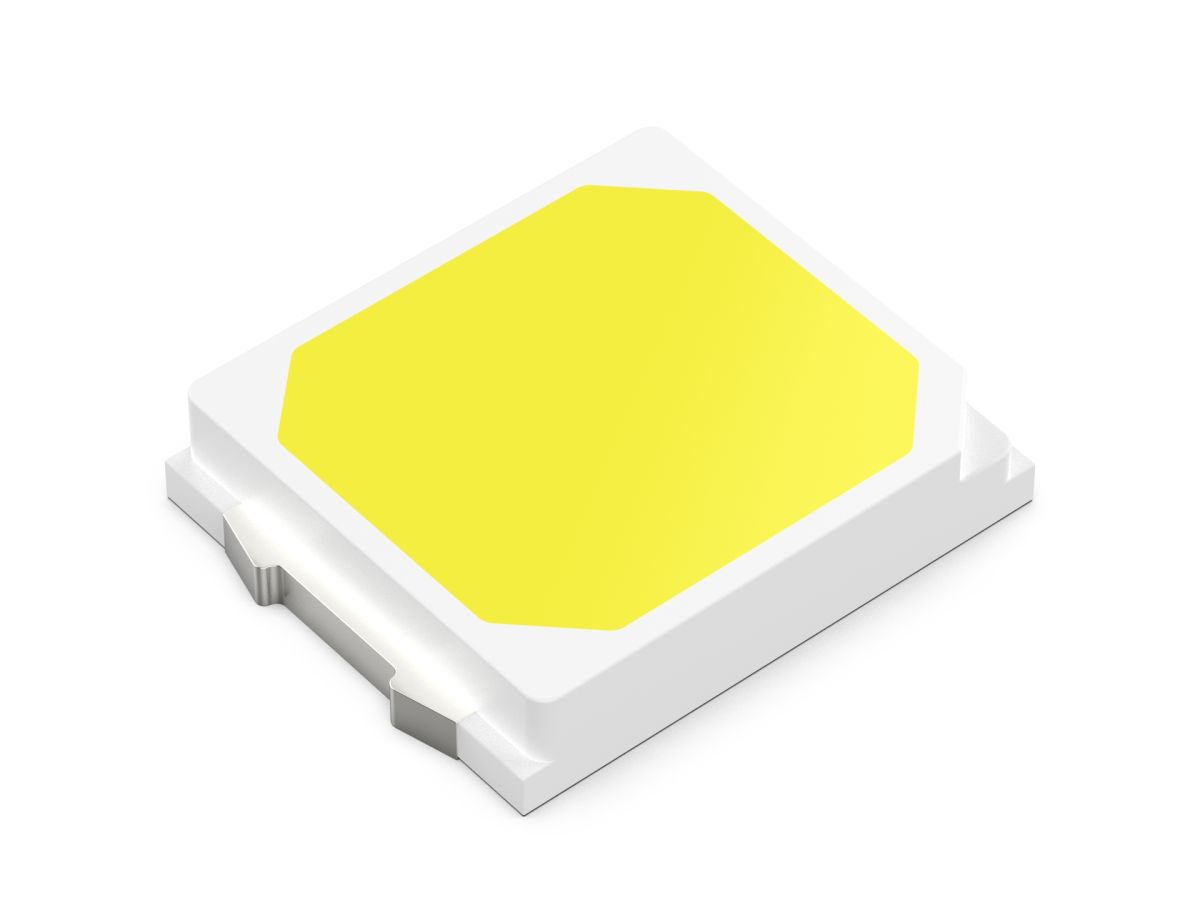

PLCC2 2835 Education 1W

Indoor Lighting

Characteristics of the

High Color Rendering Index (CRI)
High Luminous Efficacy
Premium ambient lighting with no main light source
High light quality for healthy illumination
Full luminaire rated A-level energy efficiency

Product Parameters

Part Number	Ra	Color	Test Condition (mA)	Vf(V) Typ	Input power Typ（W）	Luminous flux Typ (lm)	Efficacy Typ. (lm/W)	Thermal resistance Rj-c Typ（℃/W)	Forward current (mA)
RF-W3TP32DS-FF-J2	90	3000K	130	6.2	1	140	174	18	180
RF-W4TP32DS-FF-J2	90	4000K	140	6.2	1	140	161	18	180
RF-W6TP32DS-FF-J2	90	6500K	140	6.2	1	140	161	18	180
RF-W2TP32DS-FF-I3	90	2700K	100	8.9	1	124	139	15	120
RF-W3TP32DS-FF-I3	90	3000K	100	8.9	1	130	146	15	120
RF-W4TP32DS-FF-I3	90	4000K	100	8.9	1	138	155	15	120
RF-W5TP32DS-FF-I3	90	5000K	100	8.9	1	138	155	15	120
RF-W57TP32DS-FF-I3	90	5700K	100	8.9	1	138	155	15	120
RF-W6TP32DS-FF-I3	90	6500K	100	8.9	1	138	155	15	120
