Module & Light Strips
- According to different application needs to provide a variety of optional packaging styles, can provide front and side stickers, different strength to meet the various needs of hard and soft lamp;
- ANSI/ERP, full color temperature coverage;
- Special color area/color point customization.
| LED Type | Part Number | Ra | Color | Test Condition (mA) | Vf(V) Typ | Input power Typ（W） | Luminous flux Typ (lm) | Efficacy Typ. (lm/W) | Thermal resistance Rj-c Typ（℃/W) | Forward current (mA) |

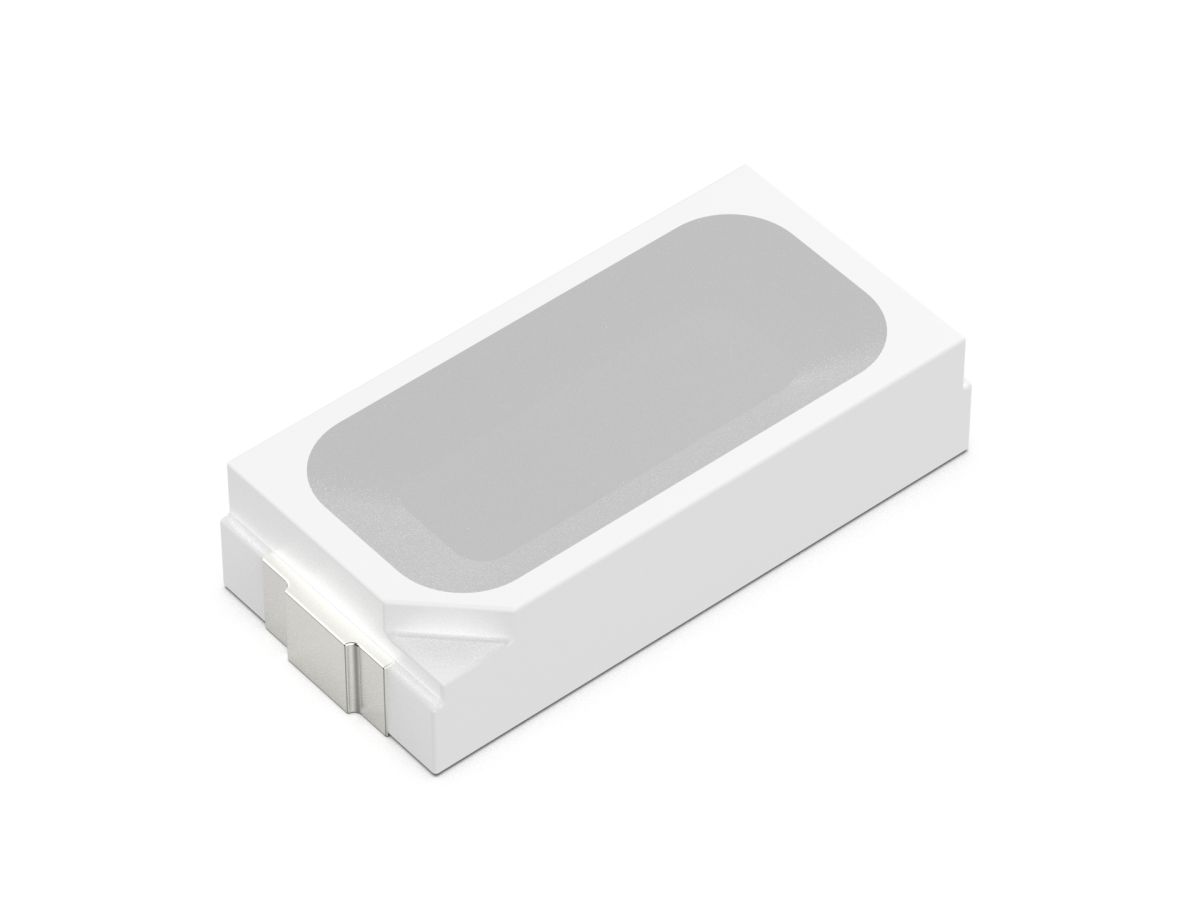

| 3014 Product (I13DS) 3.0*1.4*0.7mm | RF-27HI13DS-ED-F-Y | 80 | 2700K | 30 | 2.9 | 0.1 | 13 | 149 | 66 | 40 |
| RF-30HI13DS-ED-F-Y | 80 | 3000K | 30 | 2.9 | 0.1 | 14 | 161 | 66 | 40 | |
| RF-35HI13DS-ED-F-Y | 80 | 3500K | 30 | 2.9 | 0.1 | 14 | 161 | 66 | 40 | |
| RF-E40HI13DS-ED-F-Y | 80 | 4000K | 30 | 2.9 | 0.1 | 14 | 161 | 66 | 40 | |
| RF-60HI13DS-ED-F-Y | 80 | 6000K | 30 | 2.9 | 0.1 | 14 | 161 | 66 | 40 | |
| RF-65HI13DS-ED-F-Y | 80 | 6500K | 30 | 2.9 | 0.1 | 14 | 161 | 66 | 40 | |
| RF-P25HI13DS-DF-N-Y | 80 | 2500K | 60 | 2.9 | 0.2 | 25 | 144 | 75 | 65 | |
| RF-P30HI13DS-DF-N-Y | 80 | 3000K | 60 | 2.9 | 0.2 | 28 | 161 | 75 | 65 | |
| RF-P35HI13DS-DF-N-Y | 80 | 3500K | 60 | 2.9 | 0.2 | 28 | 161 | 75 | 65 | |
| RF-P40HI13DS-DF-N-Y | 80 | 4000K | 60 | 2.9 | 0.2 | 29 | 167 | 75 | 65 | |
| RF-P57HI13DS-DF-N-Y | 80 | 5700K | 60 | 2.9 | 0.2 | 29 | 167 | 75 | 65 | |
| RF-P65HI13DS-DF-N-Y | 80 | 6500K | 60 | 2.9 | 0.2 | 29 | 167 | 75 | 65 |
August 19, 2022
August 19, 2022
August 19, 2022
August 19, 2022
August 19, 2022
August 19, 2022
If you're interested in our products or service, you can choose to leave your information here, and we will be in touch with you shortly.
- Linear light strip without light spot, light Angle 180°, CRI> 90, up to 130LM/W, waterproof grade: IP20, minimum bending radius: 50mm, maximum length 5m;
- Suitable for dark slot backlight/household profile/contour hook and other supporting applications.
- Linear light strip without light spot, light Angle 180°, CRI> 90,100 LM/W, single end power supply maximum service length 5m;
- Three kinds of integrated power products, customers can freely choose power consumption applications;
- Suitable for dark slot backlight/contour hook and other supporting applications.
- Small size meets the high density requirement;
- High mechanical strength, resistant to bending without breaking;
- Single Bin supply, good color consistency;
- Intellectual property protection at home and abroad.
- Linear light strip without light spot, light Angle up to 360°, waterproof rating: IP20, minimum bending radius: 50mm, maximum service length of single end power supply 5m;
- CRI> 90, up to 110LM/W, suitable for dark slot backlight/household profile/contour hook and other supporting applications.
- RGBW four-in-one linear lamp strip without light spot, light Angle 180°, waterproof rating: IP20, minimum bending radius: 50mm, maximum service length of single end power supply 5m;
- Realize up to thousands of color distribution, widely applicable to all kinds of RGBW dimming controller;
- Suitable for dark slot backlight/contour hook and other supporting applications, home and entertainment area environment application effect switching excellent.
- RGB full-color linear light strip without light spot, luminescent Angle 180°, waterproof rating: IP20, minimum bending radius: 50mm, maximum service length of single end power supply 5m;
- Widely applicable to all kinds of RGB dimming controllers;
- Suitable for dark slot backlight/contour hook and other supporting applications, home and entertainment area environment application effect switching excellent.
- Spotless linear light strip with a 180° beam angle, IP20 waterproof rating, and a minimum bending radius of 50mm. Maximum usable length with single-end power supply is 5m;
- CRI>80, 95LM/W, adjustable color temperature range: 18006500K or 27006500K;
- Only compatible with non-polarized CCT dimming and color temperature controllers available on the market;
- Ideal for applications such as cove backlighting and contour edging, offering excellent adaptability for ambient lighting in residential and office environments.
- Spotless linear light strip with a 180° beam angle, IP20 waterproof rating, and a minimum bending radius of 50mm. Maximum usable length with single-end power supply is 5m;
- CRI>80, 95LM/W, adjustable color temperature range: 18006500K or 27006500K;
- Widely compatible with CCT dimming and color temperature control systems;
- Suitable for applications such as cove backlighting and contour edging, offering excellent adaptability for ambient lighting in residential and office environments.
- Spotless linear light strip with a 180° beam angle, CRI>90, up to 130LM/W, waterproof rating: IP20, minimum bending radius: 50mm, maximum length: 5m.
- Suitable for cove backlighting, small home fixtures, and edge contouring.
- Linear light strip without light spot, light Angle 180°, CRI> 90, up to 100LM/W, waterproof grade: IP20, minimum bending radius: 50mm, single end power supply maximum use length 10m, to achieve the end brightness consistency, no difference;
- Suitable for dark slot backlight/household profile/contour hook and other supporting applications.
- Linear lamp strip without light spot, light Angle 180°, waterproof grade: IP20, minimum bending radius: 50mm, maximum service length 5m;
- Suitable for dark slot backlight/household profile/contour hook and other supporting applications.
- Linear lamp strip without light spot, light Angle 180°, waterproof grade: IP20, minimum bending radius: 50mm, maximum service length 5m;
- Suitable for dark slot backlight/household profile/contour hook and other supporting applications.
- Linear lamp strip without light spot, light Angle 180°, waterproof grade: IP20, minimum bending radius: 50mm, maximum service length 5m;
- Suitable for dark slot backlight/household profile/contour hook and other supporting applications.
Miniaturized & High-Density
Multicolor
High Voltage
IC Intelligence / Smart IC
Miniaturized & High-Density
Multicolor
High Voltage
IC Intelligence / Smart IC
High Color Rendering Index (CRI)
High Luminous Efficacy
Premium ambient lighting with no main light source
High light quality for healthy illumination
Full luminaire rated A-level energy efficiency
- High light efficiency, good color uniformity;
- Good heat dissipation, PCB board thickness: 1.5mm, thermal conductivity: 1.5W/MK, copper thickness is 75 microns;
- The design of the module is excellent, and the voltage difference between the head and tail of the four modules together is less than 0.3V;
- The module can change the color temperature every 100K, the explicit can change from 81 to 95;
Main application scenarios: factory workshop, car wash, gym, office, home, bookstore, conference room, hospital, campus, etc.
- Miniaturization facilitates application space design;
- Can replace CHIP LED, with better reliability, application experience of large companies at home and abroad;
- Customized color book with rich models and specifications;
- High mechanical strength, can withstand bending.
- High light efficiency, good color uniformity;
- module heat dissipation, PC casing Ruifeng private mold, finished product can pass 65° ball pressure test;
- Finished waterproof grade IP68;
- Constant voltage scheme, thermal current error can be controlled within 5%.
Ruifeng refrigerator lamp module mainly uses freezer, according to the structure is divided into: vertical, horizontal, semi-vertical, combined, island, island and so on.
Ruifeng outdoor street lamp module is suitable for urban road, expressway, main road, secondary road, branch road and residential lighting;
Projectors ARE WIDELY USED IN ROAD LIGHTING, AIRPORT/PORT LIGHTING, STADIUM LIGHTING, EXHIBITION HALL LIGHTING, HIGH POLE lighting square lighting, etc.
- The whole lamp thickness is thin, good uniformity. The subsequent lamp power to increase, better heat resistance, brightness improvement, module will have a greater room for price reduction;
- This product was first developed and applied for the appearance utility model patent;
Patent number: 201320798184.1
- By mixing and pasting different power lamp beads and different Angle lenses, the whole lamp is better and uniform, and the dark area in the middle of the ceiling lamp is solved, and the utility model patent of appearance is applied.
Patent Number: 201420259908.x
Main application of ceiling light: home, office, hotel, etc
- SPI magic color linear light strip without light spot, light Angle 180°, CRI> 90,100 LM/W, single end power supply maximum service length 5m;
- Use IC:SPI-P923F;
- Suitable for dark slot backlight/contour hook and other supporting applications, can achieve a variety of monochromatic transformation effects: gradient, flow, running lights and other effects.
-2835 LED, IP67, 120LED/ meter;
- Soft light/uniform light: the thick flexible silicone sheath can be used as a light diffuser to make the light more uniform, even if the dark area can not be seen at close distance;
- UV/corrosion resistance: neon tube material is silica gel, can be used for outdoor environment long-term direct sunlight does not yellowing;
- Good flexibility: can bend or twist into different shapes
- Special design: built-in IC, single LED control;
- Rainbow effect: the dimmable and colored LED light strip shows the static and dynamic effect better than the ordinary LED light strip;
- Wide application: suitable for bar, dining room, bedroom, upstairs, kitchen, porch and living room decoration, especially suitable for Christmas, Halloween, parties, weddings and other festivals and events.
- Color temperature adjustable from warm white (2700K) to cold white (6500K);
- Color consistency control within 3 steps, 60 LED (warm white) + 60 LED (cold white) /M;
- Intelligent control via Bluetooth or WiFi;
- Widely used: can be used as cabinet lamp, makeup mirror lamp, room lamp, desk lamp, etc.
- Use 5050 LED, built-in 5 chips: RGB+ warm white + cold white, 60LED/M;
- Color can be regulated to create a variety of lighting possibilities;
- Intelligent control via Bluetooth or WiFi;
- Wide application: suitable for a variety of indoor and outdoor applications, such as living room, kitchen, under the cabinet, dining room, bedroom, upstairs, party decoration, stairs, wedding.
- High cost performance;
- Single BIN LED ensures color consistency;
- Constant pressure type brightness up to 125lm/W;
- Support project customization and provide the most professional design.
- High quality 3014 LED, 120LED/M;
- Side glow, excellent uniformity and color consistency;
- Support project customization and provide the most professional design;
- Ideal solution for cabinet/shelf/display cabinet lighting.
- Ultra-high density, uniform luminescence, 350 LEDs/ M;
- Linear luminescence;
- Small size LED, second only to LED 2216;
- High reliability, strong bending resistance.
- Ultra-high density, uniform luminescence, 700 LEDs/ M;
- Linear luminescence, no black spots;
- minimum size LED;
- High reliability, strong bending resistance.
- High voltage 220V linear lamp strip without light spot, CRI> 90, waterproof grade: IP67 (need to be used with silica gel sleeve), minimum bending radius: 100mm;
- Directly connected with the mains, no need to connect the power supply, constant current design, maximum use length of 50 meters, the brightness of the end of the same;
- Suitable for outdoor lighting, dark slot backlighting/household profile/contour edge matching applications.
- Soft light/uniform light: the thick flexible silicone sheath can be used as a light diffuser to make the light more uniform, even if the dark area can not be seen at close distance;
- UV/corrosion resistance: neon tube material is silica gel, can be used for outdoor environments long-term direct sunlight does not yellow;
- Good flexibility: can bend or twist into different shapes
- Spotless linear light strip with a 180° beam angle, waterproof rating: IP20, minimum bending radius: 50mm, maximum length: 5m.
- Suitable for cove backlighting, small home fixtures, and edge contouring.
- Spotless linear light strip with a 180° beam angle, waterproof rating: IP20, minimum bending radius: 50mm, maximum length: 5m.
- Suitable for cove backlighting, small home fixtures, and edge contouring.
- Spotless linear light strip with a 180° beam angle, CRI>90, up to 130LM/W, waterproof rating: IP20, minimum bending radius: 50mm, maximum length: 5m.
- Suitable for cove backlighting, small home fixtures, and edge contouring.
